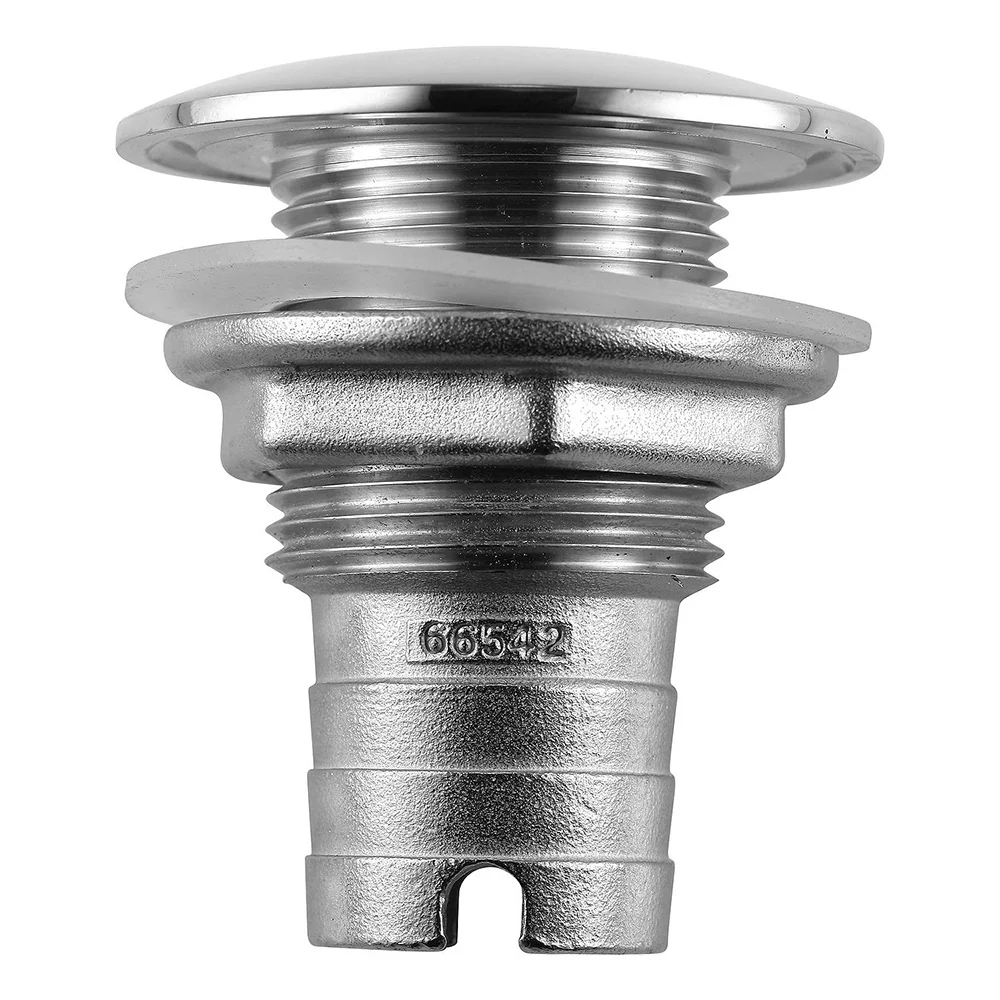

Attwood Stainless Steel Thru-Hull Short Straight Barbed - 1" Inner Diameter [66542-3]

Stainless Steel Thru-Hull Short Straight Barbed - 1" Inner Diameter

Polish your image with these beautiful, durable stainless steel fittings. Why specify plastic parts when these fittings will last the life of the boat?

Rugged Stainless Construction:

• Cast from certified Enhanced 316 Stainless Steel alloy for strength and lifetime corrosion-resistance
• All visible areas are polished to a mirror finish, then passivate each part for additional protection
• Thick steel sidewalls withstand continual stress and hose flexing

Faster, Simpler Installation:

• Each Thru-Hull is available with a new silicone gasket
• A channel under the flange holds a bead of sealant, making it easier to apply a trouble-free seal
• All models have wrench flats or an end notch to hold as a gripping surface; one installer can tighten all connections from inside the hull
• The barbed tail ends provide plenty of room to hold multiple clamps

Stainless Steel Straight Thru-Hulls, Barbed

• Short Thread is a more compact size, which allows installation near corners and in confined areas

Specifications:

• Hose size: (inch) 1" inner diameter
• Flange Diameter: (inch) 2-1/4"
• Thread O.D. (outside diameter): (inch) 1-3/8"?
• Thread Length: (inch) 1-1/8"
• Barb Length: (inch) 1"
• Total Length: (inch) 2-1/2"
• Install Hole Saw Size: (inch) 1-1/2"?
• Thread NPSM: (inch) 1"
• Max Hull Thickness: (inch) 5/8"

*Stainless Steel Thru-Hull Connectors are designed for installation above the water line only

Specifications:

• Hose Size: 1"
• Material: Stainless Steel
• Box Dimensions: 2"H x 3"W x 3"L WT: 0.6 lbs
• UPC: 022697665423
